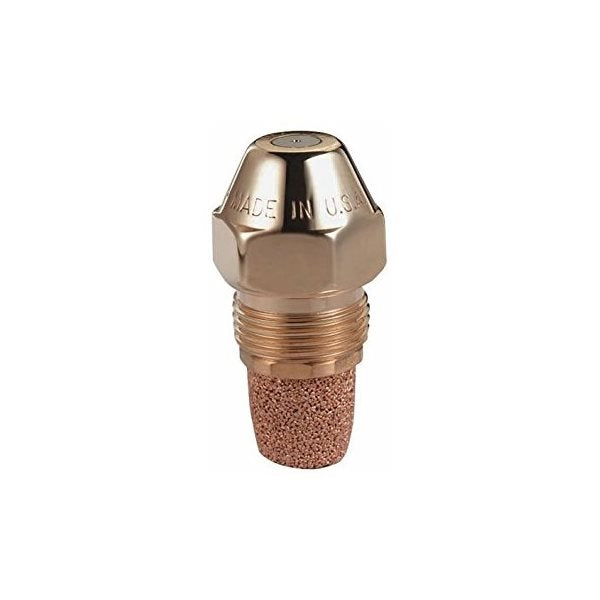

Delavan .50 GPH 80° Type A Hollow Cone Oil Burner Nozzle

Product Description

The Delavan .50 GPH 80 Degree Type A Oil Burner Nozzle is designed for compatible oil-fired heating systems that require a hollow-cone spray pattern.

The Type A design concentrates fuel droplets toward the outside of the spray cone, helping provide reliable ignition and low-noise combustion. It is primarily used with burners that have a hollow-cone air pattern and is suitable for applications up to 2.00 GPH when specified by the equipment manufacturer.

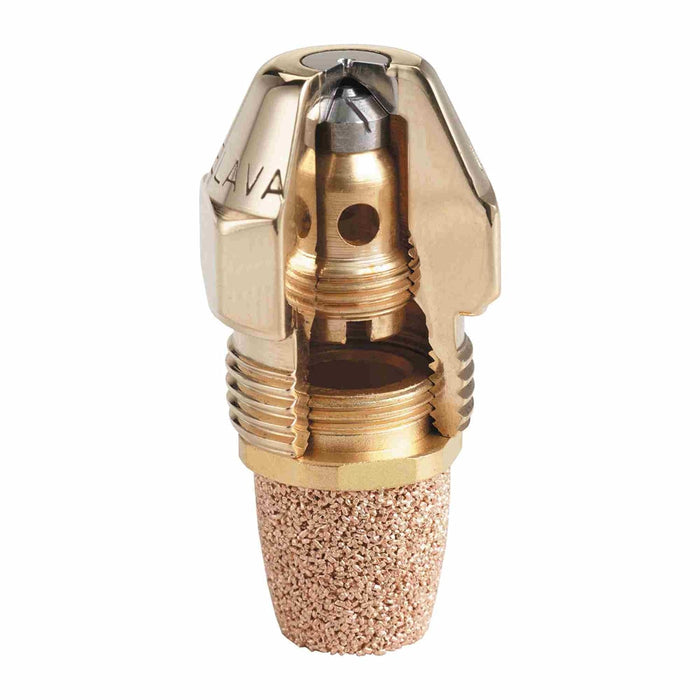

This nozzle features a durable brass body with stainless-steel internal components for dependable fuel atomization and long service life.

Key Features

• Delavan part number 00050-80A1
• .50 GPH flow rate
• 80-degree spray angle

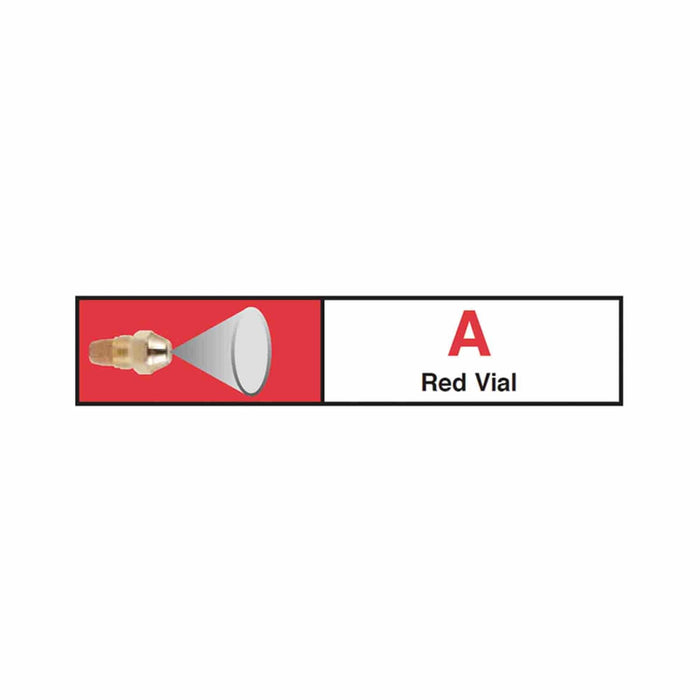

• Type A hollow-cone spray pattern
• Designed primarily for hollow-cone burner air patterns
• Fuel droplets concentrated toward the outside of the spray cone
• Helps promote reliable ignition and low-noise combustion
• Brass nozzle body
• 416 stainless-steel orifice disc and distributor
• 9/16"-24 UNEF nozzle thread
• Designed for compatible oil-fired furnaces, boilers, and burners
• Always match GPH, spray angle, and spray pattern to equipment specifications
