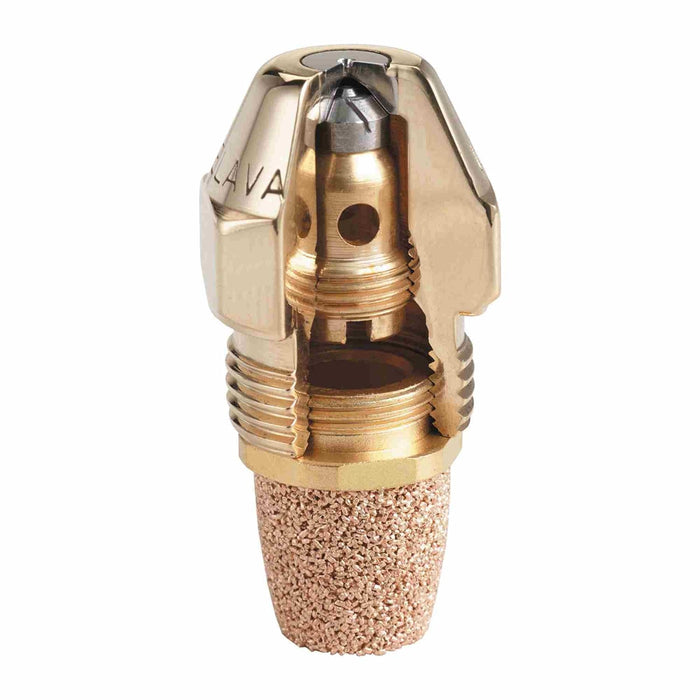

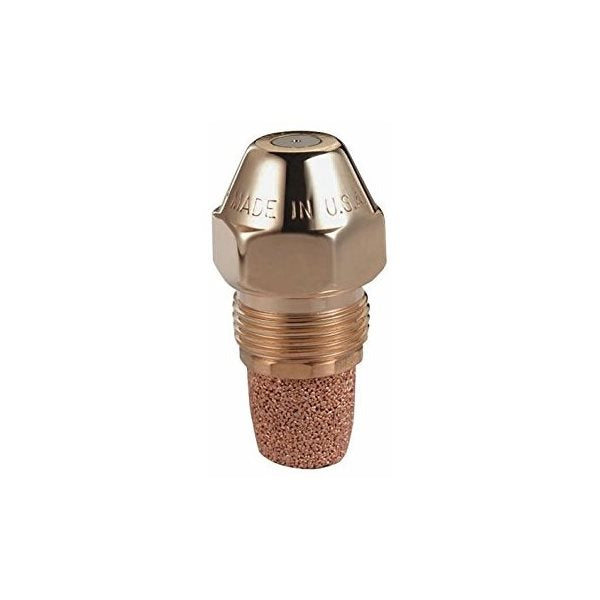

Delavan .60 GPH 80° Type A Hollow Cone Oil Burner Nozzle

Product Description

The Delavan .60 GPH 80 Degree Type A Oil Burner Nozzle is designed for residential oil-fired heating systems that require a hollow-cone spray pattern.

Delavan Type A nozzles concentrate fuel droplets toward the outside of the spray cone, helping provide reliable ignition, a stable flame, and low-noise combustion. Hollow-cone nozzles are primarily used with burners that have a hollow-cone air pattern and are commonly used in applications up to 2.00 GPH.

The nozzle features durable brass and stainless-steel components and is designed for dependable fuel atomization in compatible oil-fired furnaces, boilers, and burners.

Key Features

• Delavan oil burner nozzle
• .60 GPH flow rate
• 80-degree spray angle

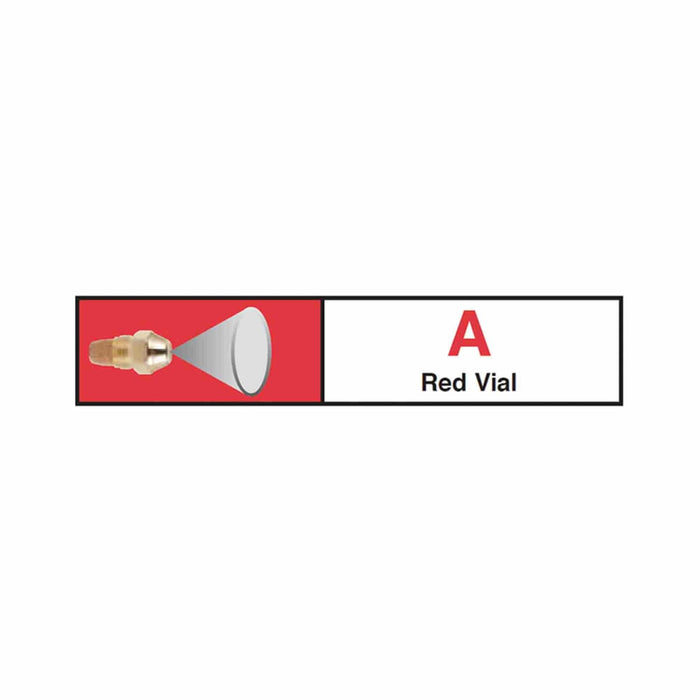

• Type A hollow-cone spray pattern
• Designed primarily for hollow-cone burner air patterns
• Fuel droplets concentrated toward the outside of the spray cone
• Helps promote reliable ignition and low-noise combustion
• Suitable for applications up to 2.00 GPH when specified
• Brass nozzle body construction
• Stainless-steel internal components
• 9/16"-24 UNEF nozzle thread
• For compatible oil-fired furnaces, boilers, and burners
• Match GPH, spray angle, and spray pattern to equipment specifications
