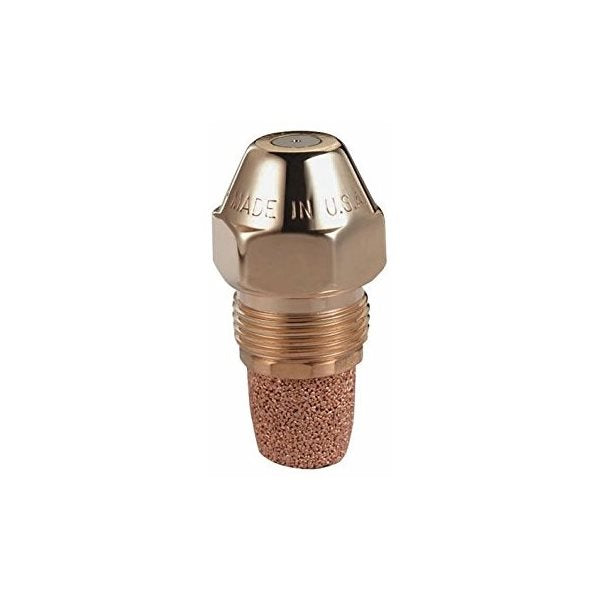

Delavan .50 GPH 90° Type A Hollow Cone Oil Burner Nozzle

Product Description

The Delavan .50 GPH 90 Degree Type A Oil Burner Nozzle is designed for compatible oil-fired heating systems that require a hollow-cone spray pattern.

The Type A design concentrates fuel droplets toward the outside of the spray cone, helping promote reliable ignition, stable combustion, and low-noise operation. Delavan Type A nozzles are commonly used with burners that have a hollow-cone air pattern and are suitable for lower-flow residential heating applications when specified by the equipment manufacturer.

This nozzle features a .50 GPH flow rate and a wide 90-degree spray angle, making it suitable for compatible furnaces, boilers, and oil burners that call for this exact nozzle specification.

Key Features

• Delavan oil burner nozzle
• .50 GPH flow rate
• 90-degree spray angle

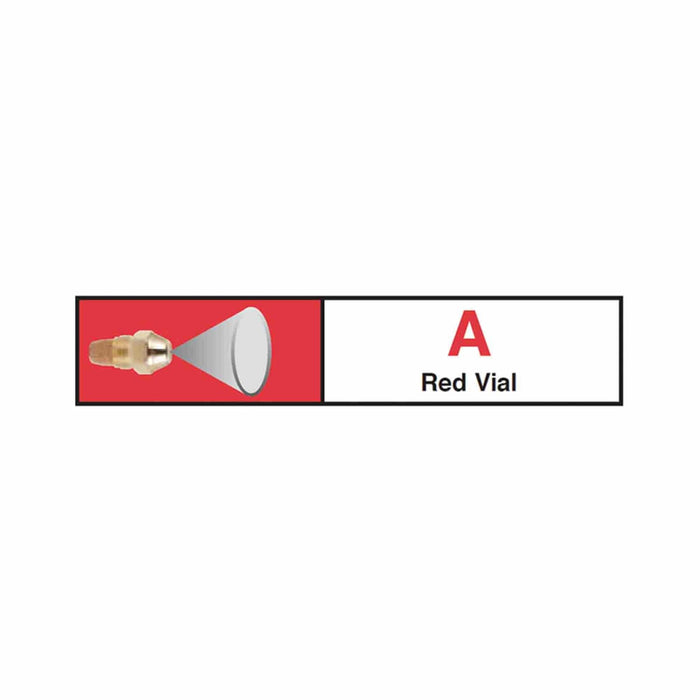

• Type A hollow-cone spray pattern
• Designed primarily for hollow-cone burner air patterns
• Fuel droplets concentrated toward the outside of the spray cone
• Helps support reliable ignition and low-noise combustion

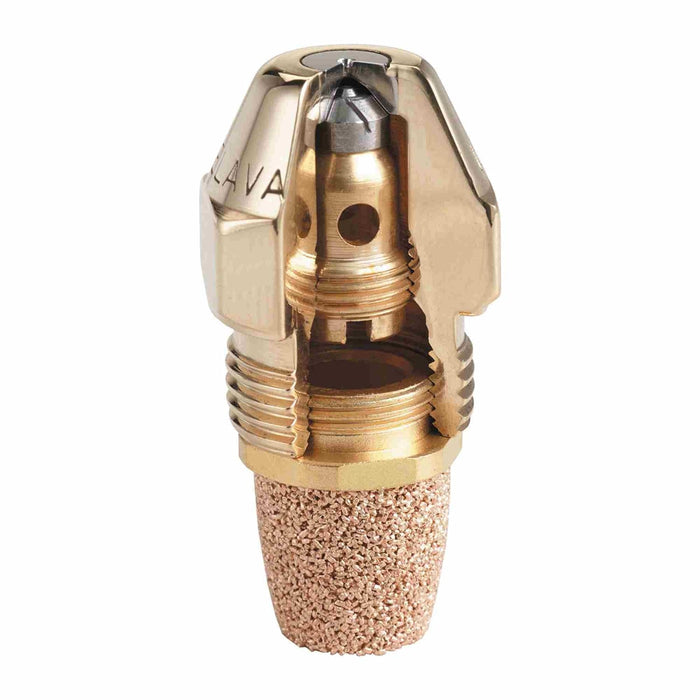

• Durable brass nozzle body
• Stainless-steel internal components
• 9/16"-24 UNEF nozzle thread
• Designed for consistent fuel atomization
• For compatible oil-fired furnaces, boilers, and burners
• Always match GPH, spray angle, and spray pattern to equipment specifications
